- Custom oversized high-tensile steel Low-Step frame
- Single-speed drivetrain
- Alloy crankset with sealed cartridge bottom bracket
- Alloy linear-pull front brake with parking lock

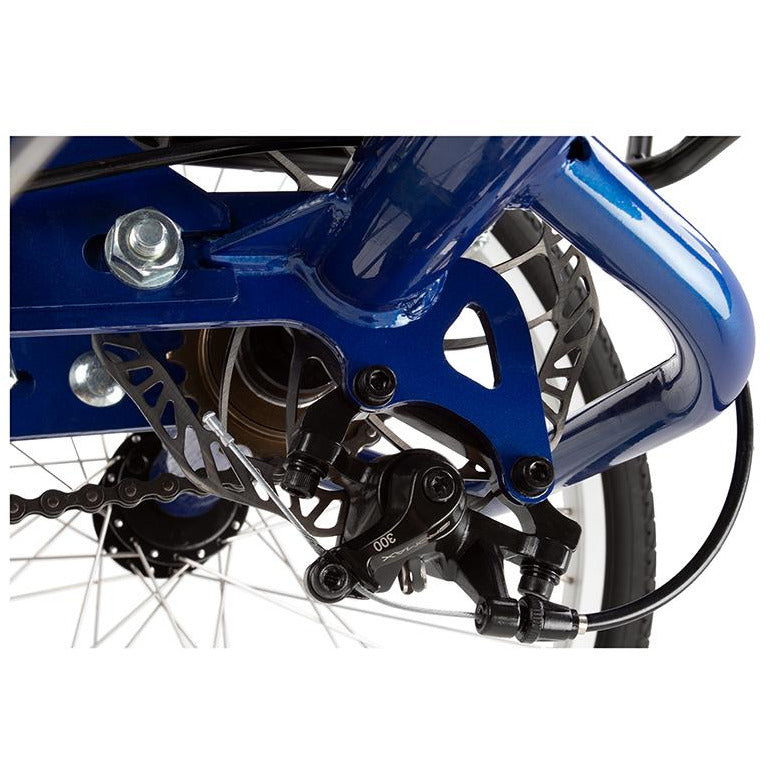

- Alloy mechanical rear disc brake with parking lock
- Alloy rims with 12/13g stainless steel spokes
- 24" x 1.75" Multi-condition tires
- 9" High-rise steel handlebar and stem, foam grips
- Sun Tractor saddle with heavy duty steel base
- Steel chain guard and nickel plated front fender

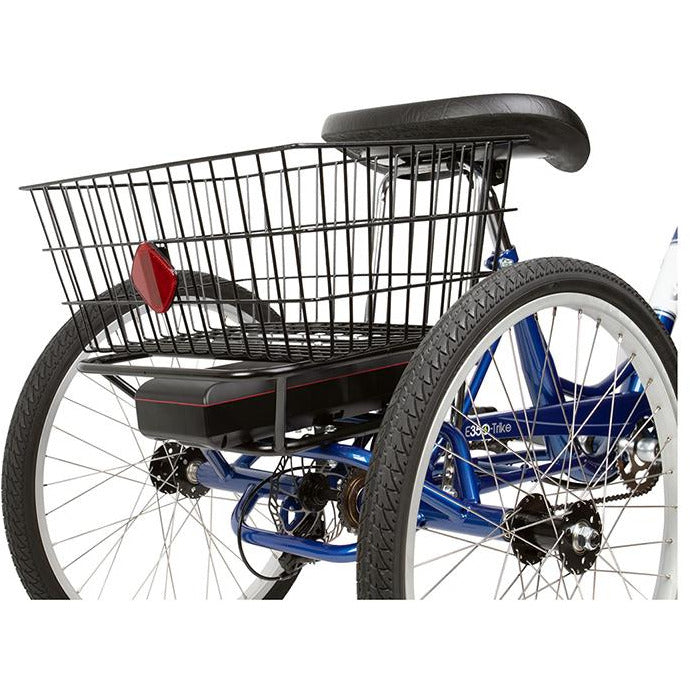

- Vinyl coated steel wire basket
- 350 watt / 36 volt front hub motor

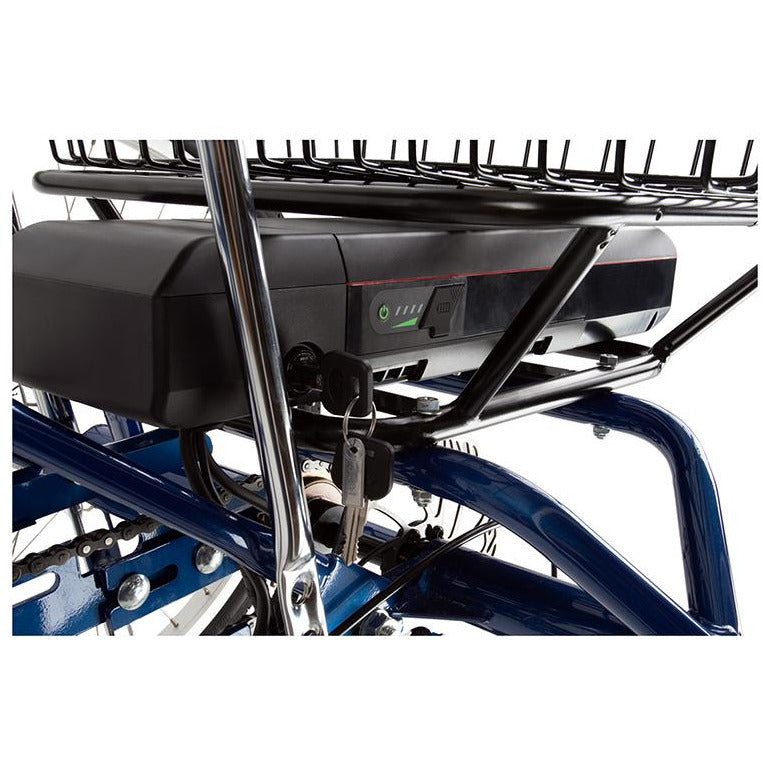

- 36 volt / 10.4 Ah lithium polymer battery
- 10 mph top speed / 20-30 mile range

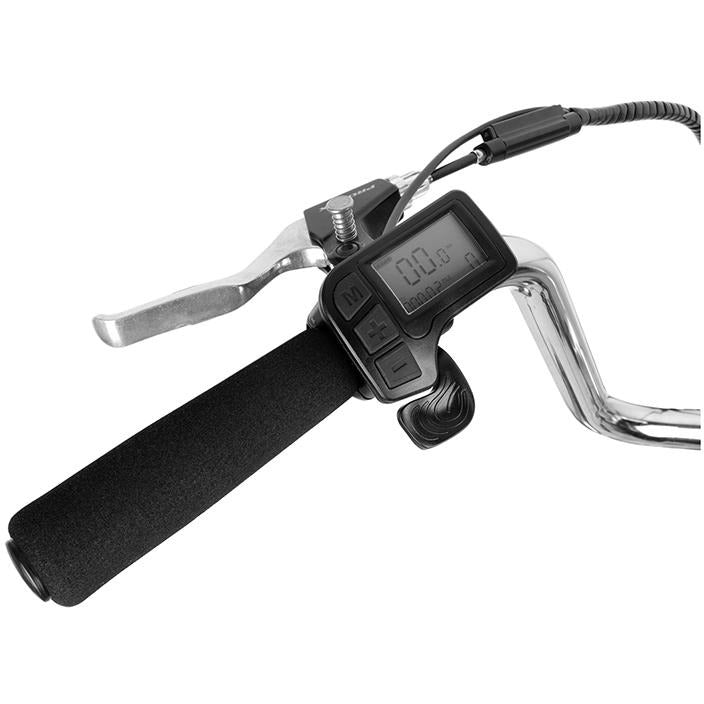

- Dual mode pedal assist or throttle control operation
Specs
Frame Type:Unisex
Frame Size:17.5"
Frame Color:Blue Metallic
Wheel Size:24"
Rim Color:Silver
Step Through:15.5"
Min Saddle Height:27"
Gearing:1 Speed
Overall Dimensions:70.5" L x 30.25" W
Frame Standover:14.5"
Min Seat to Ground:28.25"
Min Seat to Pedal:28"
Bike Weight:73 Lbs.
Rider Weight Limit:250 Lbs.
